Vestil WTJ-2 Winch Operated Truck Jib Crane, Welded Steel, 1000 lbs Retracted Capacity, 56" Overall Height, Yellow

You looking to find the
"Vestil WTJ-2 Winch Operated Truck Jib Crane, Welded Steel, 1000 lbs Retracted Capacity, 56" Overall Height, Yellow" Good news! You can purchase
Vestil WTJ-2 Winch Operated Truck Jib Crane, Welded Steel, 1000 lbs Retracted Capacity, 56" Overall Height, Yellow with secure price and compare to view update price on this product. And deals on this product is available only for limited time.

Price: $306.85 $291.00

Product Feature
- Welded steel, truck-mounted jib crane for lifting items up to 1000 lbs. into truck bed
- Telescoping boom for greater horizontal reach than a single-length boom
- Manual cable winch for lifting loads up and down and hydraulic hand pump for pivoting boom up and down
- 360-degree base to rotate crane in any direction
- Overall height of 56" with a boom that extends from 32-3/4" to 49-1/4"
Product Description

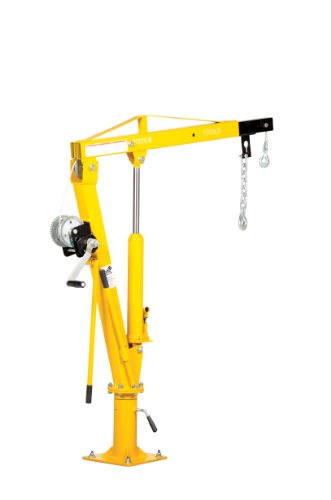

The Vestil WTJ-2 truck-mounted jib crane is a welded-steel, manual cable winch-operated, 360-degree crane with a telescoping boom for lifting loads into the bed of a pickup truck. The telescoping boom offers a longer horizontal reach than jib cranes with a single-length boom. It has a load capacity of 1000 lbs. with the boom retracted and a capacity of 500 lbs. with the boom fully extended. A manual cable winch with a 1/4" cable lifts loads up and down, and a hydraulic hand pump rotates the boom vertically. The jib crane’s boom can rotate 360 degrees around the mast. The crane includes one grab hook, one chain slot lock, and one sling hook with a latch.
The overall height of the crane, from the bottom of the mast to the top of the boom when the boom is perpendicular to the mast, is 56”. The boom extends from 32-3/4” to 49-1/4”, and the boom’s vertical reach ranges from 0” to 105” with the boom fully extended and from 13” to 90-1/2” with the boom retracted. The base has a height of 12-1/2”, and the mounting plate’s dimensions are 10-1/2” x 10-1/2”. The crane weighs 125 lbs. Some vehicles may require additional backing or stiffener plates to be installed in order to provide sufficient support for the crane.
Jib cranes are used to lift a variety of materials in industrial, commercial, and military settings. Jib cranes consist of a single vertical mast, a cable winch, and a horizontal boom. The winch may be hand-operated or electric. The boom may be telescoping (extendable) or single-length, and it may or may not be able to rotate vertically. Jib cranes can typically rotate up to 360 degrees around the base, though some jib cranes may rotate less than that. They may be mounted on the floor, a wall, the back of a pickup truck or van, or another sturdy surface. Some jib cranes are stationary, while others can move along a track.
Vestil Manufacturing Corp. manufactures a variety of materials handling equipment, including jib and gantry cranes, loading dock equipment, and storage solutions. The company, founded in 1968, is headquartered in Angola, Indiana.
Vestil WTJ-2 Winch Operated Truck Jib Crane, Welded Steel, 1000 lbs Retracted Capacity, 56" Overall Height, Yellow Review
I ordered this unit and another unit orange colored unit from a different company, one for the S10 and this one for the one ton flat bed truck, yes there was a difference in price, even tho price was more for this unit, the difference in price is well worth it, yes both come with the same lift rating, but there far from being the same creature, this unit that made by Vestil, is so superior in the construction the materials, the quality of the winch, the design, a real bearing to rotate on, the cable is nearly twice the size, the winch is twice the winch, (when said and done I wish I would have ordered two of these units),
The few things that are a little cheesy is the rotation leverage handle, they really did not put much thought into it, but it is held by a snap pin and easy to remove if in the way of the winch handle. There is a screw in lock on the swivel column but not as effective as desired,
The other thing I will most likely modify is to get a pin instead of the bolt on the boom extension, one of the last things one wants, is to go wrench hunting to extend the boom.
One other feature I would have liked to see, would be a ring on the base to hook the cable in, for transport,
Any one getting one, will want/need to reinforce the bed of the truck where one is mounting it, as the stock bed floor is not designed or made to hold a concentrated weight or the leverage this unit can produce on the base, this may take a machine or welding shops help for the proper reinforcement, on both trucks this was necessary to build some reinforcement plates under the bed, even on the flat bed, If you want a pickup/trailer crane that has a winch, (which I think is necessary), this is the real deal, not a toy, yes there are cheaper units out there but I do not think one will find a better value than this unit,
Most of the consumer Reviews tell that the "Vestil WTJ-2 Winch Operated Truck Jib Crane, Welded Steel, 1000 lbs Retracted Capacity, 56" Overall Height, Yellow" are high quality item. You can read each testimony from consumers to find out cons and pros from
Vestil WTJ-2 Winch Operated Truck Jib Crane, Welded Steel, 1000 lbs Retracted Capacity, 56" Overall Height, Yellow ...
